OA network floor
Product introduction：

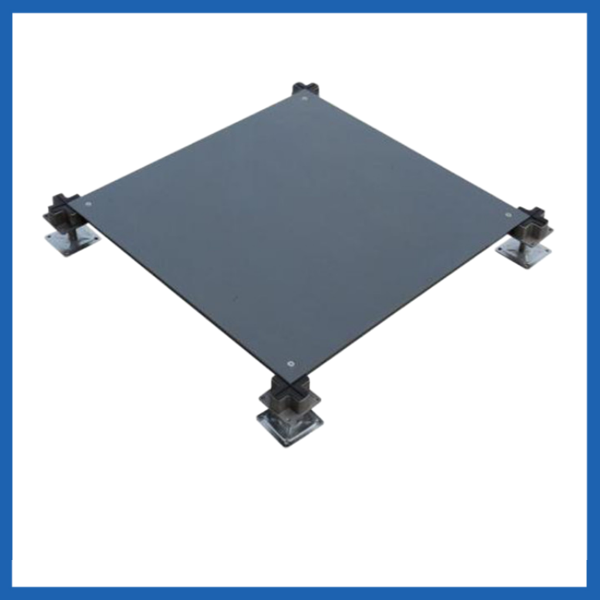

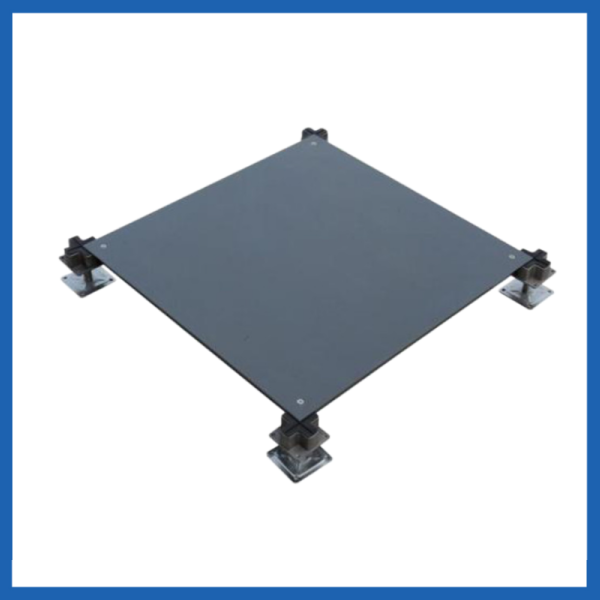

It is composed of all steel, with four corners of independent support structure. The bottom of the floor is made of ST14 tensile plate, and the surface is made of SPCC hard steel plate. The surface of the floor is treated with (conductive) epoxy resin electrostatic spraying, the inner cavity is filled with foaming cement, and the four corners are punched with corner lock holes. The support adopts galvanized or aluminized molding, the height of screw rod can be adjusted arbitrarily, and there are two kinds of cutting and welding around the floor.
Functional features：
1、Four corner support, adjustable support height, flexible organization, large wiring volume, good interchangeability and convenient maintenance;
2、Ultra low installation height (35mm--150mm), used with trunking, and ground sockets can be installed between trunking plates to lead out at will;
3、High reuse rate, convenient disassembly and assembly, saving office costs and long service life.
Product application：
The all steel OA intelligent network floor is suitable for all kinds of 5A intelligent buildings, 5A office buildings and places with overhead requirements and network generic cabling, and is more suitable for the ground reconstruction of generic cabling in old office buildings, with carpets on the surface.
Specification and model：
500×500×28mm
600×600×32mm

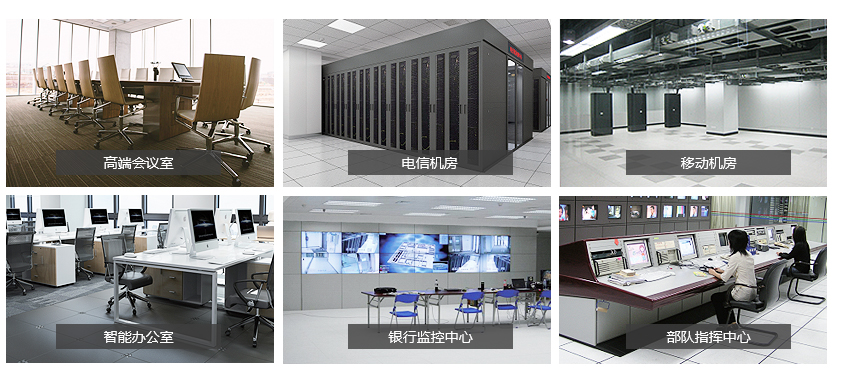

It is widely used in electronic computer room, satellite ground station machine room, radio control room, TV transmitting station control room, microwave communication station machine room, program-controlled switching machine room, clean workshop, electronic instrument factory assembly workshop, confidential optical instrument manufacturing workshop, hospital, school and other occasions with static electricity prevention requirements, large and medium-sized computer rooms of electronic computers, communication machine rooms represented by switches, military and economic controlled by computers, National security, aviation, aerospace and transportation.
